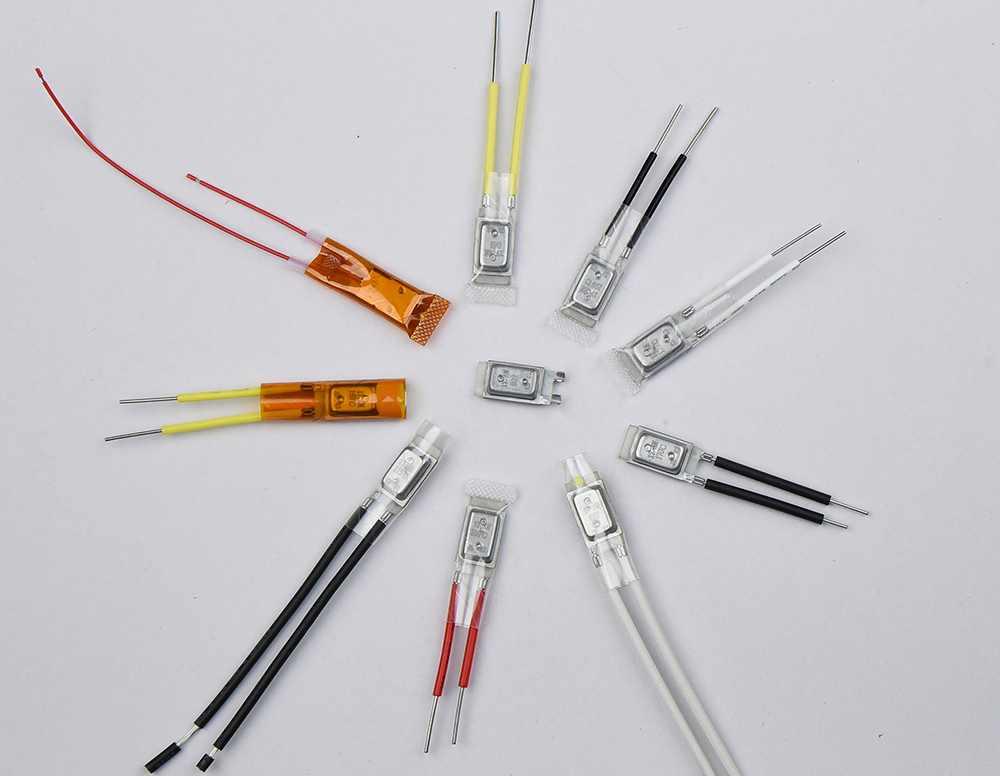

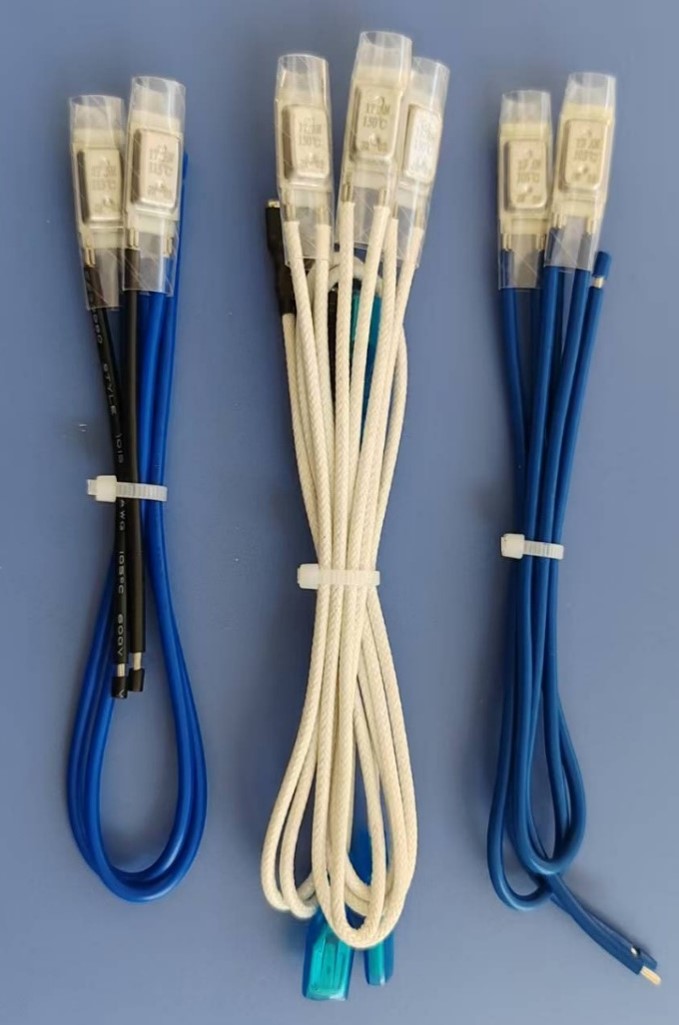

17AM Series Thermal protector
OVERVIEW
17AM series thermal protector is a small size and snap-acting thermal protection device, it is reliable and largely used in the thermal protection market.
This product is mainly suitable for thermal protection of various household appliances such as motors, water pumps, air compressors, cleaning machines, fluorescent electronic ballasts, HID ballasts, lighting fixtures, electric heating pads, medical hot compress pads, automotive electric blankets, glue machines, power tools, transformers, and chargers.
TECHNICAL SPECIFICATION
动作温度范围
55～200 ℃
耐久性试验
Endurance Test
10000次
10000 Cycle
小于50mΩ
＜ 50mΩ
Temperature range
动作温度偏差
Action temperature deviation
±5 ℃
认证证书
Certification
CQC、UL、CUL、TUV
额定电气性能
Rated Electrical Performance
AC125V20A 250V10A(电阻负载) DC16V20A
AC125V5~16A 250V5~16A(Resistive load) DC16V20A
常态绝缘电阻
Insulation Resistance
大于100MΩ （DC500V兆欧表）
＞100MΩ（DC500V Megger）
接触电阻
Contact Resistance
电气强度
Electric intensity
1500V/1min 无击穿
1500V/1min without breakdown；
复位方式
Reset Method
自动复位
Automatic Reset
