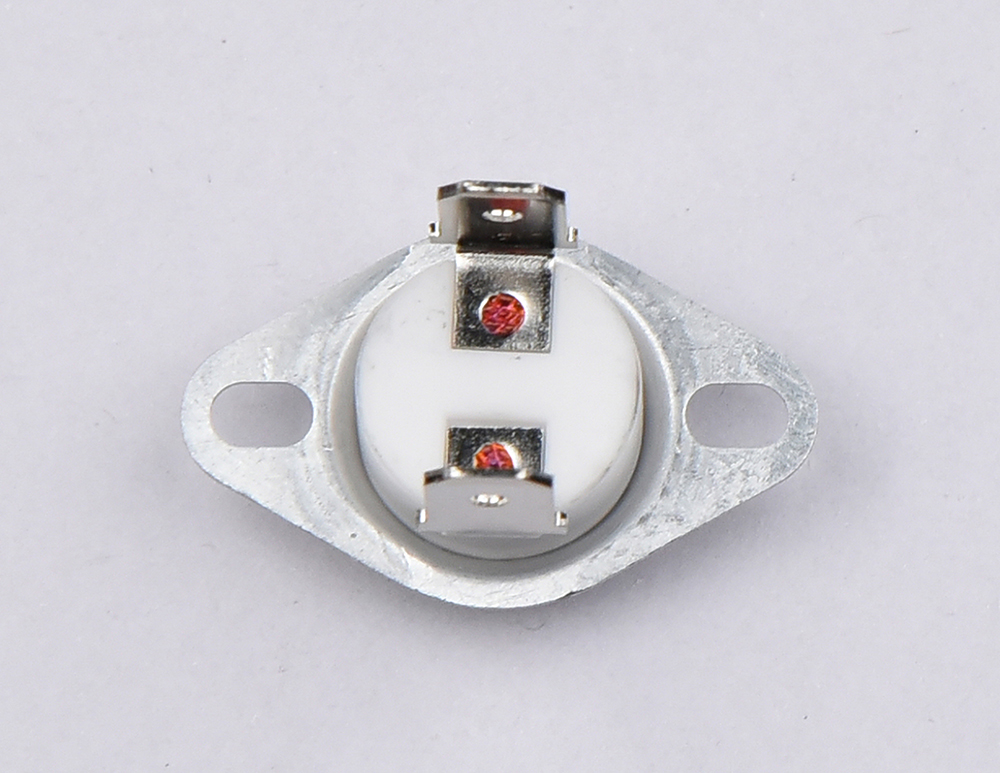

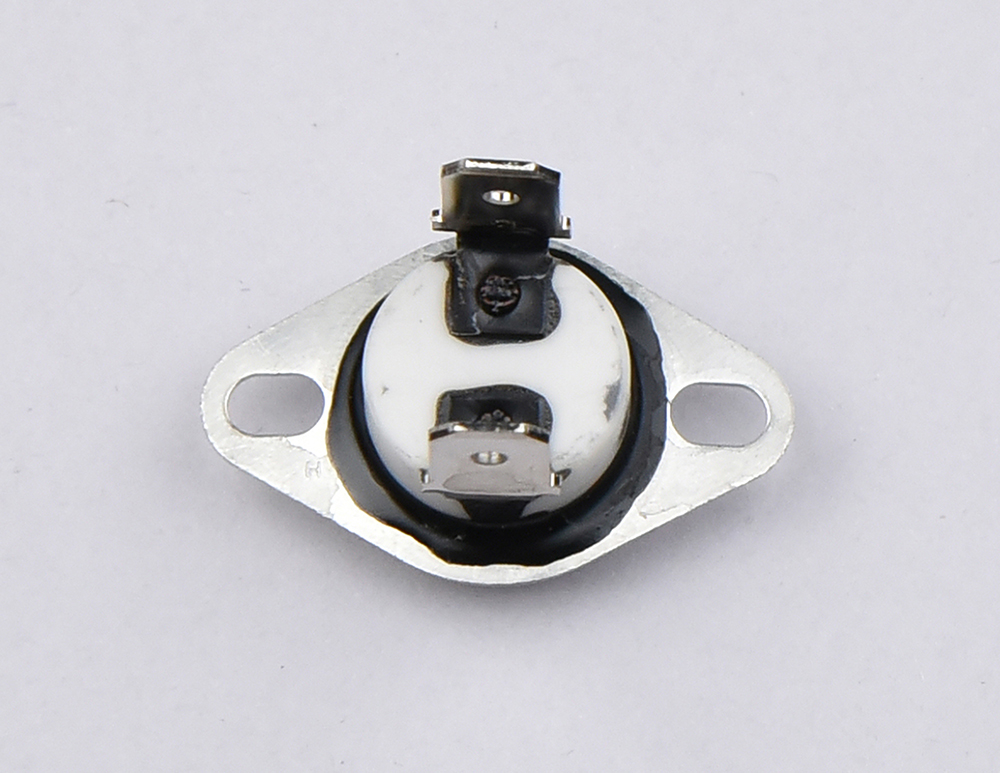

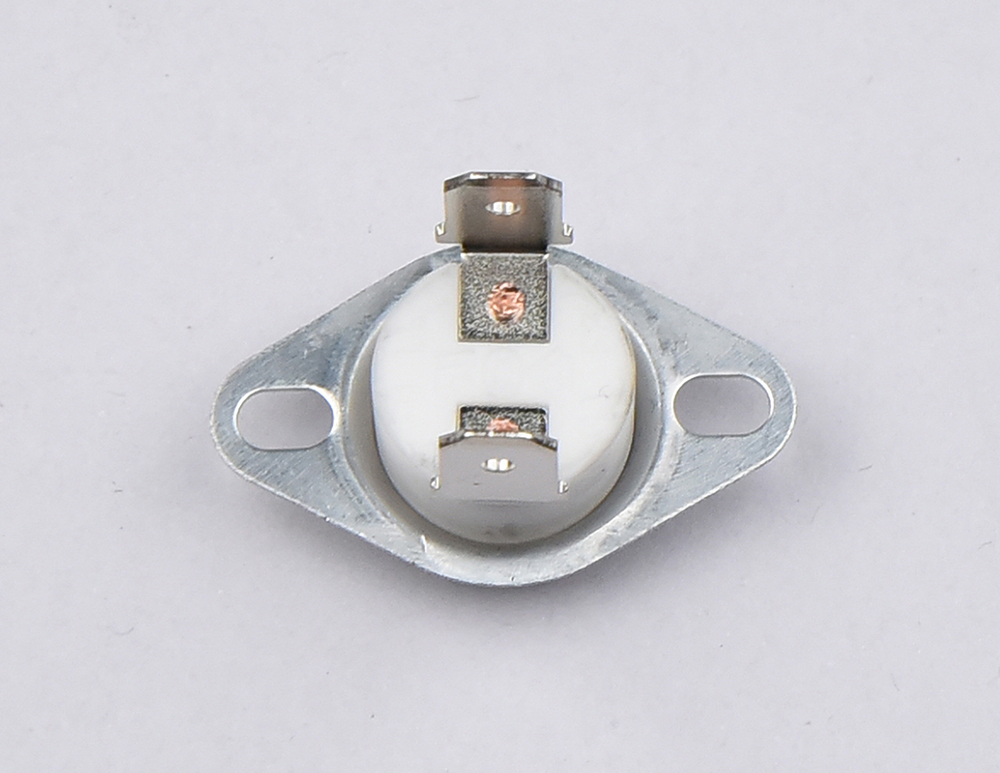

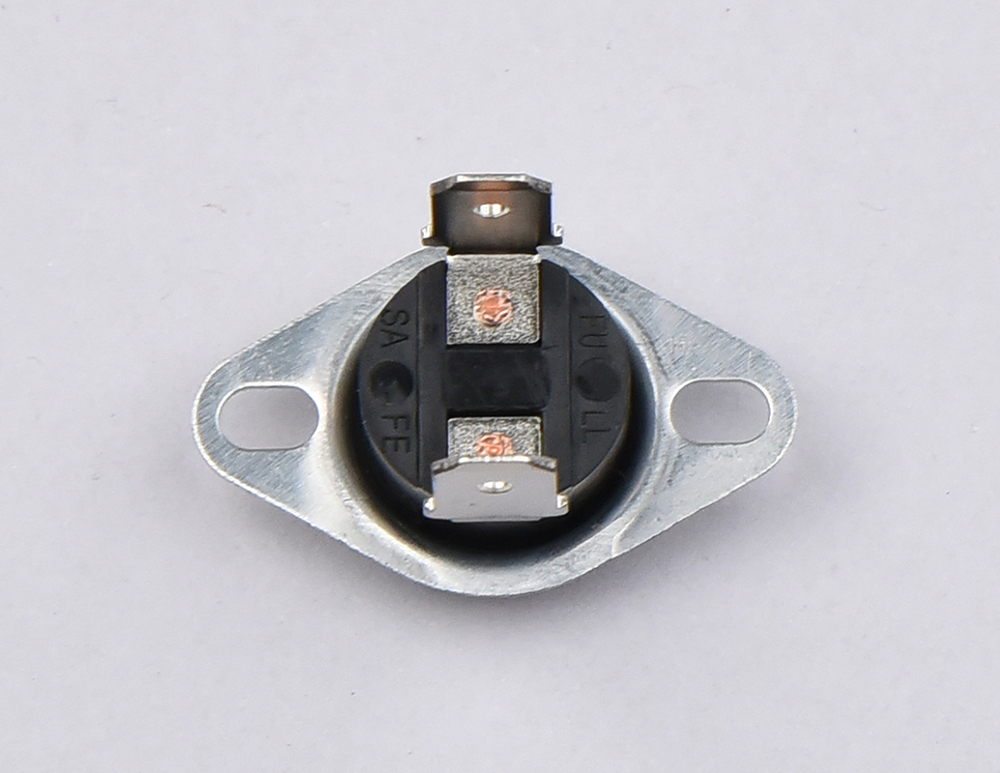

KSD1 A Type
OVERVIEW
KSD1 series thermostats are small size bimetal temperature controllers with insulation case. The influence of certain ambient temperature on its bimetal disc would result in the deformation of thedisc, then the disc snaps and drives the contact to switch off theelectric appliances and equipment. In short, it is a reliable, long-lifethermal device with predetermined temperature.
KSD series temperature controller is a thermal sensitive bimetallic strip temperature controller with a casing. By the effect of external temperature on the disc-shaped thermosensitive bimetallic strip, it deforms and instantly bounces, driving the contact action to achieve the purpose of disconnecting or closing electrical equipment. Its working temperature is fixed, the action is reliable, the service life is long, and there is no interference.
FEATURES
Current free design, reliable
Snap-acting bimetal disc
Precise action temperature, switch off the power shortly
ROHS and REACH Compliant
APPLICATION
The products are suitable for temperature control or overheat protection for hot-water heater, kettle, water dispenser, electronic disinfection device, dryer, microwave oven, electric heater, coffee machine, sandwich maker, vacuum cleaner, electric mop, toaster, soybean milk maker, electric irons and other home appliances and other electro-thermal devices and machines like electric motors and copy machine.
TECHNICAL SPECIFICATION
| Temperature range | 0～180 ℃(Phenolic) 、 0～270 ℃(Ceramics) |
| Action temperature deviation | ±5 ℃、±3 ℃ |
| Certification | CQC、UL、CUL、TUV、VDE |
| Rated Electrical Performance | AC125V5~16A 250V5~16A(Resistive load) |
|
Endurance Test |
Automatic Reset 100000 Cycle (Resistive load) |
| Insulation Resistance | ＞100MΩ（DC500V Megger） |
| Contact Resistance |
＜ 50mΩ |
| Electric intensity | 1500V/1min without breakdown； |
| Reset Method |
Automatic Reset |
CAUTION
The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.
When the thermostat is used to sense the temperature of solid items, its cup should be clung to the heating part of such items.
The top of the cup must not be pressed to any deformation, so as to avoid adverse effect on the thermostat's temperature sensitivity or its other functions.
Liquids must be kept out of the thermostat's inner part!
The base must avoid any force that could lead to crack, and it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
Terminals should not be inflected, or it will influence the dependability of electric connection.
